Roll Forming Machine for the Manufacture of Shelf Storage Double rivet shelf beam
The V beam is a typical part of rivet rack, this kind of shelf storage system is a commonly used storage rack, which is named after the rivets are hooked between the beam and the column.
Technology Processing Flow- Double rivet shelf beam Roll Forming Machine
The Double rivet shelf beam roll forming line is consisted of de-coiler, Main roll forming machine, punching and Cut to length, cutting equipment, hydraulic system, control system, etc
De-coiling --- Roll forming—punching---cut to length—stacking production
Main Parameters- Double rivet shelf beam Roll Forming Machine
- Suitable Raw material: GI steel sheet, Middle carbon steel sheet, σs≤260Mpa; 1.5mm× L
- Online Holes Punching with moulds 1 set,
- Forming Roller Stations: 12 Stations
- Main shaft: 45﹟forge steel diameter roller: Ф48mm
- working speed: 12m/min (include punching and cutting, length in ≥6m)
- Total power: 3.5kw
- Cutting mode: Automatic control, cut to length
- Hydraulic station power 4kw
- Power: 380V/3ph/50Hz (or according to the buyer's requirement)
Shelf Storage Double rivet shelf beam
The double rivet beam rivet shelf is a shelf that can store large-capacity items. A double rivet beam shelf can hold 2~3 layers of shelves, which can be arbitrarily disassembled and installed without any tools, which is convenient for users. A T-shaped column can be shared when the two shelves are placed together. Heavier P-bars and heavy-duty single rivet beams allow for heavier items.

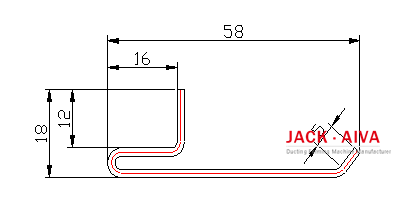

The following is the typical double Rivet beam for reference. custom Shelf Storage Beam profiles are welcome!
TAG: Double rivet shelf beam Roll Forming Machine, Shelf Storage C Beam, Shelf Storage double Rivet Beam Roll Forming Machine,
